Product Overview
The ONF Flat Nano+ LED Light brings effortless smartphone control and clean, modern styling to your small aquascapes. Built from aerospace‑grade anodized aluminum, tough plastics, and flexible rubber, it’s designed to match the sleek lines of premium rimless tanks. The heavy‑duty side bracket and dual‑axis tracking arm make mounting super smooth, with 2–6 inches of height adjustment and a full 360‑degree swivel. You can swing the light completely out of the way whenever you need to do water changes, scrape glass, or tweak your scape.
Pair with the ONF Flat Nano Stand Kit to turn this clip-on light into a standing desktop fixture.
Key Features & Benefits
-

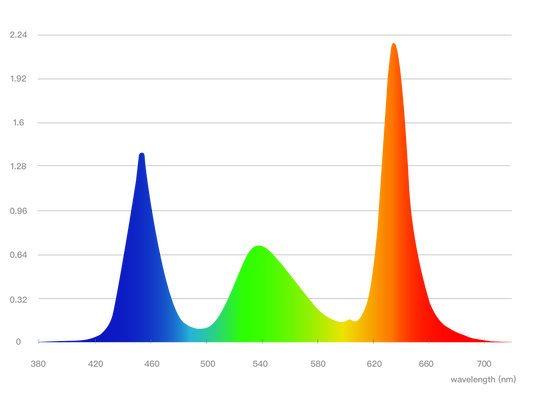

Full-Spectrum ColorFull Technology: Premium 7000K full spectrum delivers high-clarity daylight replication that drives robust photosynthesis in demanding carpet flora and low-lying stem plants.
-
360-Degree Rotational Swivel Arm: Move the fixture clear of your tank rim effortlessly, giving you unhindered physical access during maintenance.
-

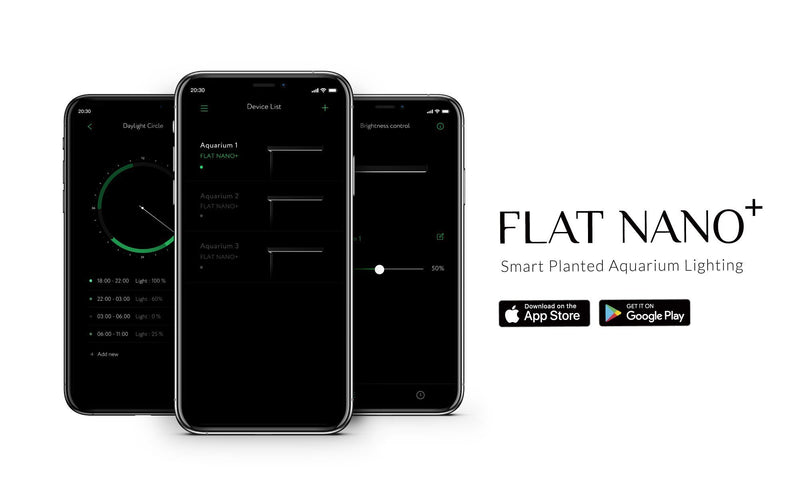

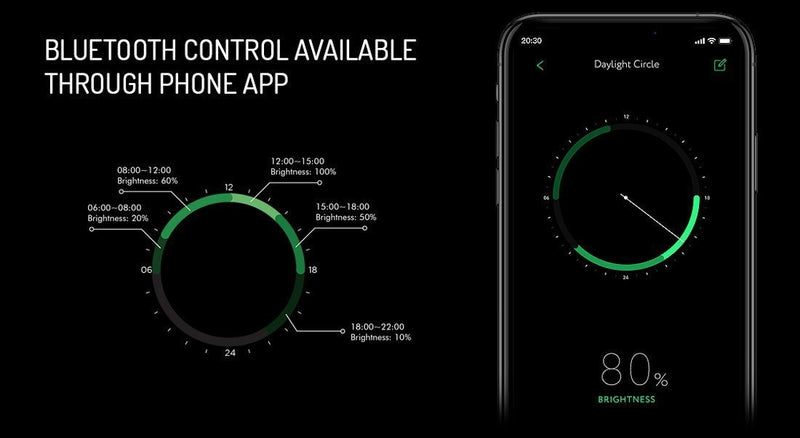

Seamless Bluetooth App Control: Connects directly to your smartphone via the ONF app for wireless scheduling, remote dimming, and automated daily photoperiods.
-
Automated Sunrise/Sunset Ramping: Gradually scales brightness up and down during activation and shutdown to prevent startling skittish fish and freshwater shrimp.
-
Built-In Timer & Setting Memory: Safeguards your custom lighting programs so the unit safely resumes its designated schedule after power cuts or when cycling power.
-
IP54 Rust-Resistant Aluminum Unibody: High-grade aluminum body doubles as an efficient passive heat sink, pulling heat away from internal electronics to secure a 50,000-hour lifespan.
-
Precision Rimless Glass Mount: Heavy-duty side clamp bracket mounts securely onto both rimless glass and acrylic panels measuring between 5mm and 8mm thick without tools.
Technical Specifications
Please check your rimless aquarium's exact glass thickness to ensure a perfect mechanical fit for the integrated rim clamp.
| Attribute |
Specification |
| Brand |
ONF (Taiwan) |
| Model |
Flat Nano+ LED Light (App-Controlled) |
| Dimensions (W x D x H) |
9.0" x 5.5" x 8.2" (22.9 x 14.0 x 20.8 cm) |
| Vertical Height Clearance |
2.0" to 6.0" Adjustable Range |
| Weight |
285 grams |
| Power Consumption |
15 Watts |
| Luminous Flux |
1,300 Lumens |
| LED Count & Type |
60 Pieces (7000K Full Spectrum) |
| Beam Angle |
110° Even-Spread Distribution |
| Water Resistance Rating |
IP54 Splash Resistant |
| Input Voltage |
AC 100–240V, 50/60Hz |
| Max Glass Thickness |
Fits 5 mm to 8 mm Thick Panels |
| Control Method |
Bluetooth Wireless (ONF Link Mobile App) |
| LED Lifetime |
~50,000 Hours |
Recommended Aquarium Models
The ONF Flat Nano+ is specifically dimensioned for nano aquariums ranging from 2 to 9 gallons:

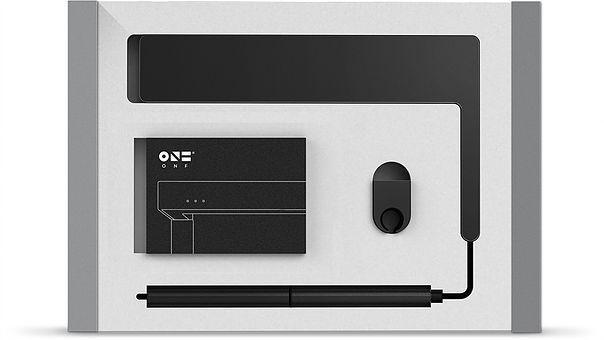

What's Included
-
1x ONF Flat Nano+ LED Light Fixture & Swivel Arm Assembly
-
1x Integrated Glass Rim-Mounting Clamp (5mm–8mm Capacity)
-
1x Power Supply Adapter & Cable Unit
Frequently Asked Questions
1. What is the difference between the standard ONF Flat Nano and the Flat Nano+?
The standard Flat Nano features on-board manual capacitive touch dimming. The upgraded Flat Nano+ includes built-in Bluetooth connectivity, allowing you to control brightness, program 24-hour schedules, and automate sunrise/sunset ramping via the ONF mobile app on your smartphone.
2. Can I convert the Flat Nano+ into a standing desktop light?
Yes! By pairing it with the ONF Flat Nano Stand Kit, you can detach the clamp mechanism and mount the fixture onto a weighted metal baseplate.
3. Will the ONF Flat Nano+ fit on rimmed or plastic-framed aquariums?
No. The side mounting bracket is engineered exclusively for rimless glass or acrylic panels between 5mm and 8mm thick. It will not fit over standard plastic aquarium frames.
